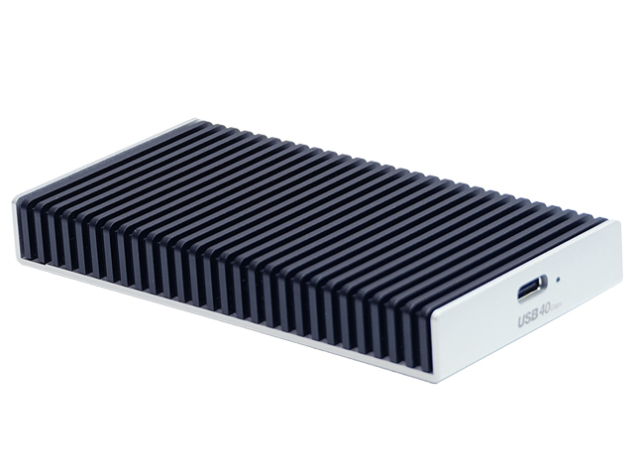

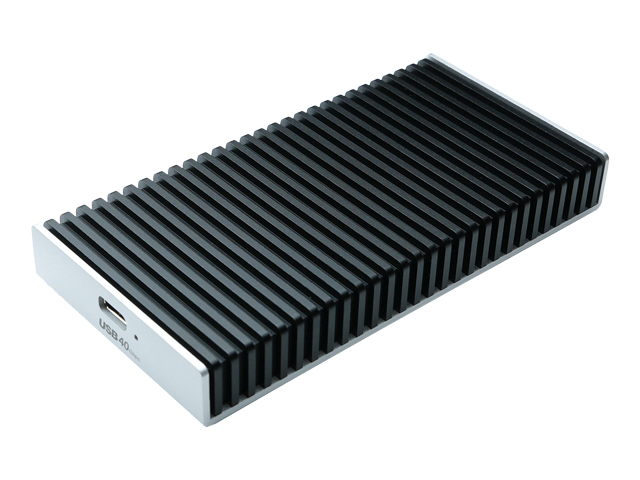

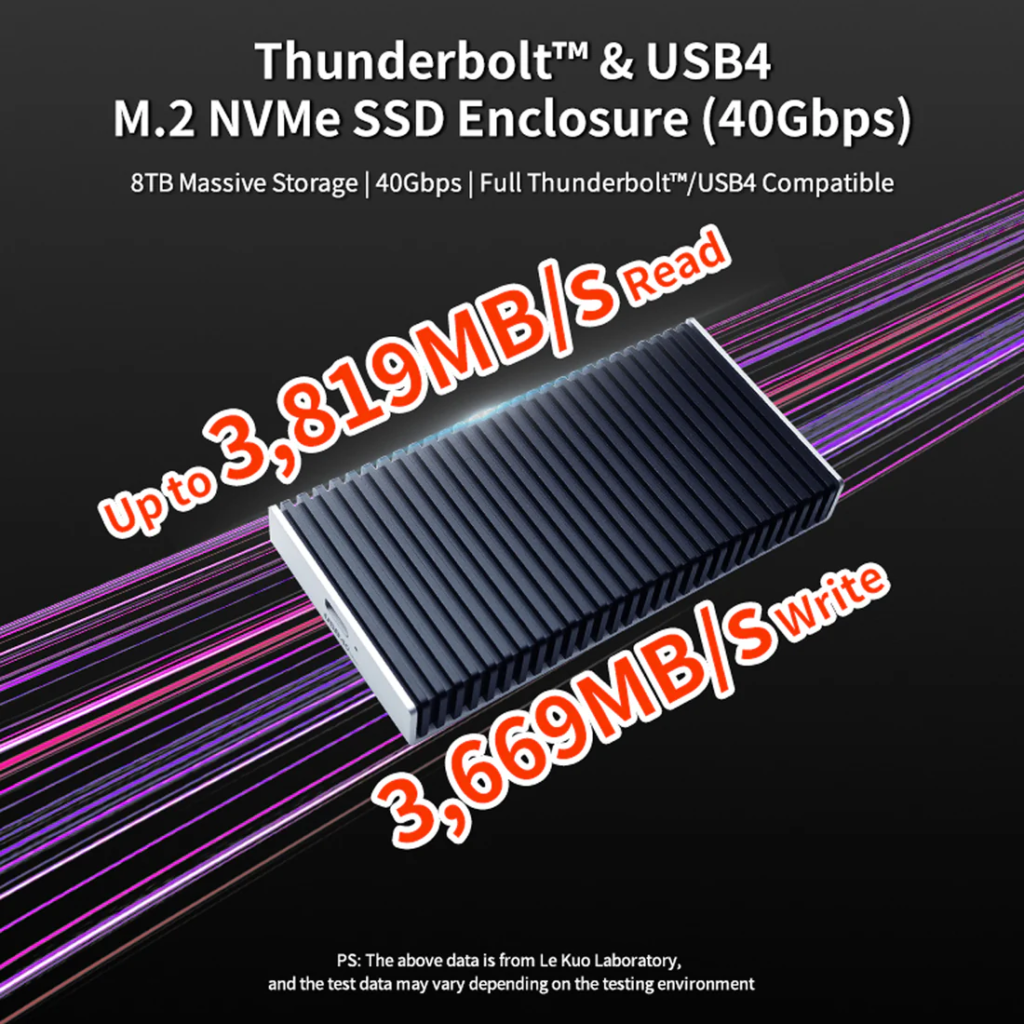

USB4 40Gbps M.2 NVMe SSD Enclosure – Thunderbolt 3/4/5 Compatible – PCIe Gen4 x4 – Fanless Aluminium
Turn any M.2 NVMe SSD into a blazing-fast 40Gbps external drive. The Lekuo AA24M11 connects via USB4 or Thunderbolt 3/4/5, delivering read speeds up to 3,819 MB/s — faster than most internal SATA SSDs. Fanless aluminium design runs cool and silent. Plug-and-play on Mac, works with Windows, Linux, and Android. Supports all M.2 sizes from 2230 to 2280.
Only 2 left in stock
Original price was: £58.99.£54.99Current price is: £54.99.
Description
USB4 NVMe Enclosure — 40Gbps. Fanless. Compact.
ASMedia ASM2464PD · PCIe Gen4 x4 · Thunderbolt 3/4/5 & USB4 · Mac Plug-and-Play
Why 40Gbps Changes Everything
Most external NVMe enclosures are limited to 10Gbps (USB 3.2 Gen 2) — that’s a ceiling of about 1,000 MB/s, regardless of how fast your SSD is. A budget 10Gbps enclosure will bottleneck even a mid-range NVMe drive.
The AA24M11 connects at 40Gbps via USB4, unlocking real-world speeds of 3,800+ MB/s read and 3,100+ MB/s write. That’s nearly 4× faster than a 10Gbps enclosure — and faster than most internal SATA SSDs.
| Interface | Max Bandwidth | Real-World Speed |
| USB 3.2 Gen 2 (10Gbps) | 10 Gbps | ~1,000 MB/s |
| USB 3.2 Gen 2×2 (20Gbps) | 20 Gbps | ~1,800 MB/s |
| USB4 / TB3/4 (40Gbps) ✅ This enclosure | 40 Gbps | ~3,800 MB/s |
Key Features
| ⚡ 40Gbps USB4 ASMedia ASM2464PD controller — the same chip used in premium enclosures from UGREEN and Sabrent. Read speeds up to 3,819 MB/s with a PCIe Gen4 SSD. |

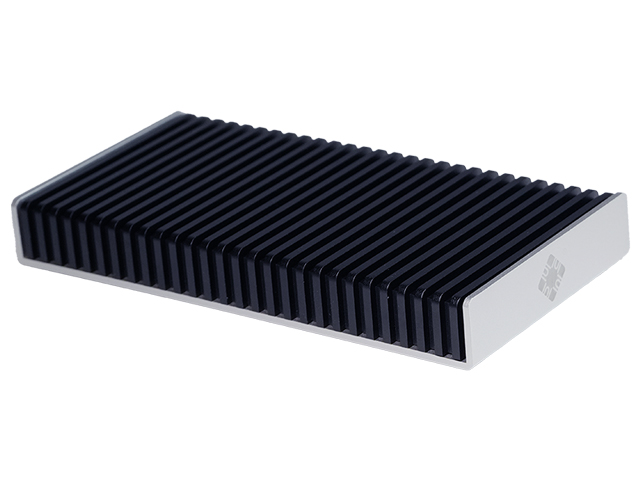

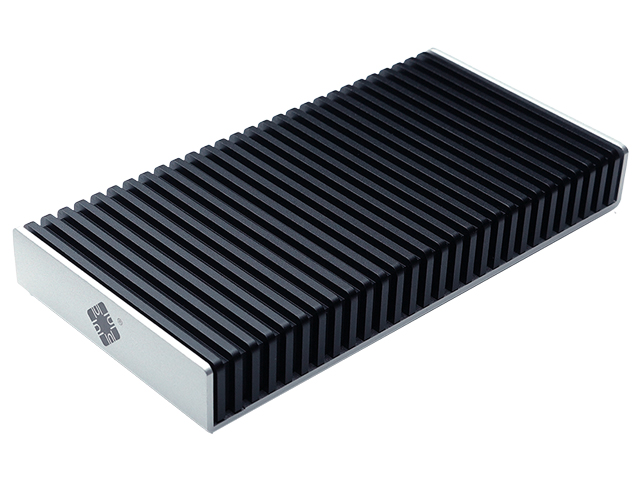

🔇 Fanless Aluminium Full metal housing acts as a passive heatsink. Zero noise, zero moving parts. Independent testing showed it outperformed fan-cooled competitors thanks to its thermal design. |

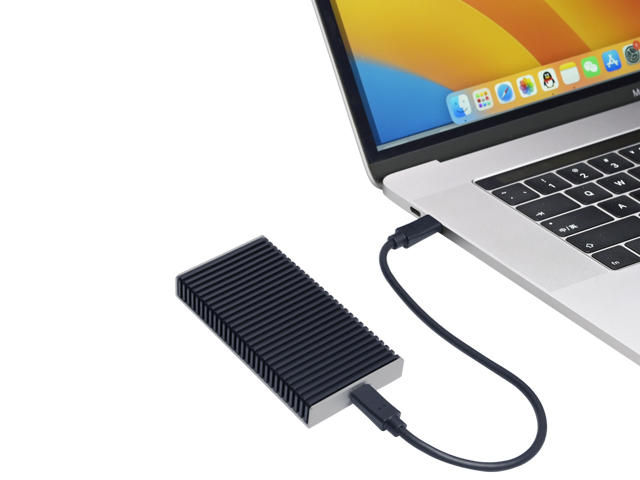

| 🍎 Mac Plug-and-Play Works instantly on macOS — no drivers needed. Also supports Windows, Linux, and Android with plug-and-play or simple driver install. |
🔌 Universal Thunderbolt Compatible with USB4, Thunderbolt 5, Thunderbolt 4, and Thunderbolt 3. Backward compatible with USB 3.2/3.1/3.0 at reduced speeds. |
| 📏 All M.2 Sizes Fits 2230, 2242, 2260, and 2280 M.2 NVMe SSDs. M Key and B+M Key supported. Up to 8TB capacity. |
🛡️ Data Protection S.M.A.R.T. drive monitoring, NVMe error reporting & recovery, UASP acceleration, hot-plug support, and NVMe power management. |
Perfect For
| 🎬 Video Editors & Content Creators Edit 4K/8K projects directly from the enclosure. At 3,800 MB/s, large video files load instantly. Perfect for on-set workflows with a MacBook Pro. |
💻 Mac Mini M4 Expansion The Mac Mini M4 has limited internal storage. Add fast, affordable NVMe storage via USB4 — it’s practically as fast as internal. |
| 🔄 Fast Backups & Migration Transfer 1TB in under 5 minutes. Clone drives, migrate systems, or create Time Machine backups at full NVMe speed. |
🎮 Portable Gaming Storage Store your Steam/game library on an external NVMe and take it between machines. Load times rival internal SSDs. |
Technical Specifications
| Model | AA24M11 |
| Controller Chipset | ASMedia ASM2464PD |
| Host Interface | USB4 (USB-C connector) |
| Host Compatibility | USB4 / Thunderbolt 5 / 4 / 3 · Backwards: USB 3.2 / 3.1 / 3.0 |
| PCIe Interface | PCIe Gen4 x4 |
| Max Transfer Speed | 40 Gbps (read up to 3,819 MB/s) |
| M.2 Slot | M Key & B+M Key — NVMe PCIe only (not SATA) |
| Supported M.2 Sizes | 2230 / 2242 / 2260 / 2280 |
| Max Capacity | 8TB |
| Cooling | Fanless — full aluminium passive heatsink |
| Protocols | NVMe 1.4c · BOT & UAS · USB PD 3.1 · S.M.A.R.T. · UASP · TRIM |
| Dimensions | 115.5 × 58.5 × 15mm |
| OS Compatibility | macOS (plug-and-play) · Windows · Linux · Android |
| Power | Bus powered (via USB-C) |
⚠️ Important Compatibility Notes
NVMe only — does NOT support M.2 SATA SSDs. Your SSD must be PCIe NVMe (M Key or B+M Key).
40Gbps requires USB4 or Thunderbolt 3/4/5. The enclosure is backward compatible with USB 3.2/3.1/3.0, but speeds will be limited to the port’s maximum (e.g., 10Gbps on USB 3.2 Gen 2).
SSDs with heatsinks won’t fit — remove any aftermarket or factory heatsink before installation.
What’s in the Box
| 📦 1× Lekuo USB4 NVMe Enclosure (AA24M11) |
| 🔌 1× USB-C to USB-C Cable (USB4 40Gbps) |
| 📖 1× User Manual |
Note: M.2 NVMe SSD is NOT included — enclosure only.
“The Lekuo AA24M11 stands out as a top performer in our tests, delivering exceptional speed and reliability… unbeatable price for the performance.”
— Michael’s Tinkerings (MCTK), July 2025
🇬🇧 UK Stock — Dispatched within 1 working day
Free Royal Mail delivery on qualifying orders · 30-day returns · USB4 cable included
Additional information
| Weight | 250 g |
|---|
Q & A
Related products
-
- Sale!

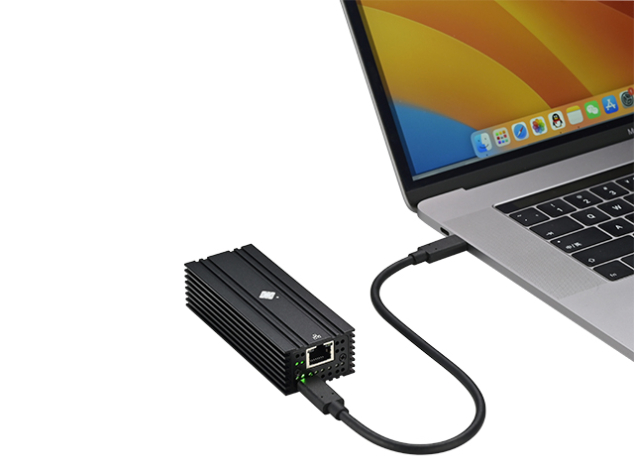

IOCREST USB4 to 10GbE Adapter: Thunderbolt 3/4/5 & USB4 Compatible – 10G 10Gb Network Speeds
