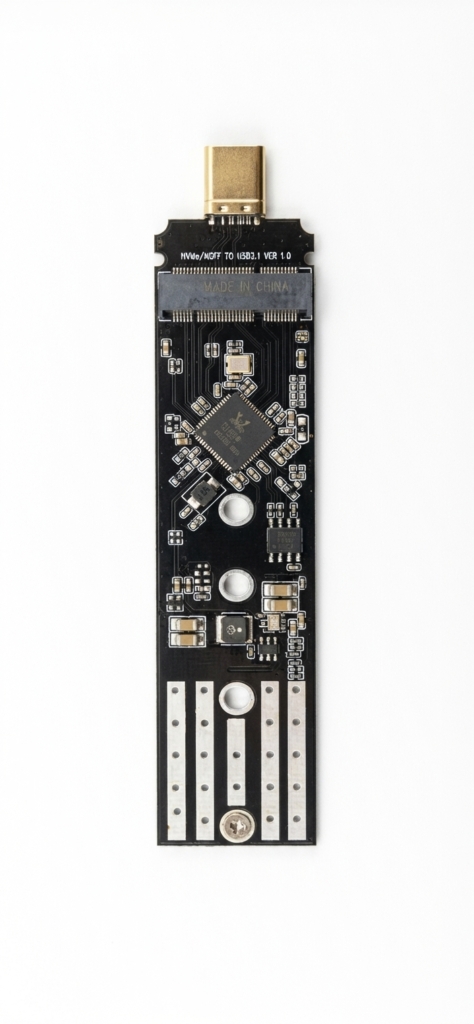

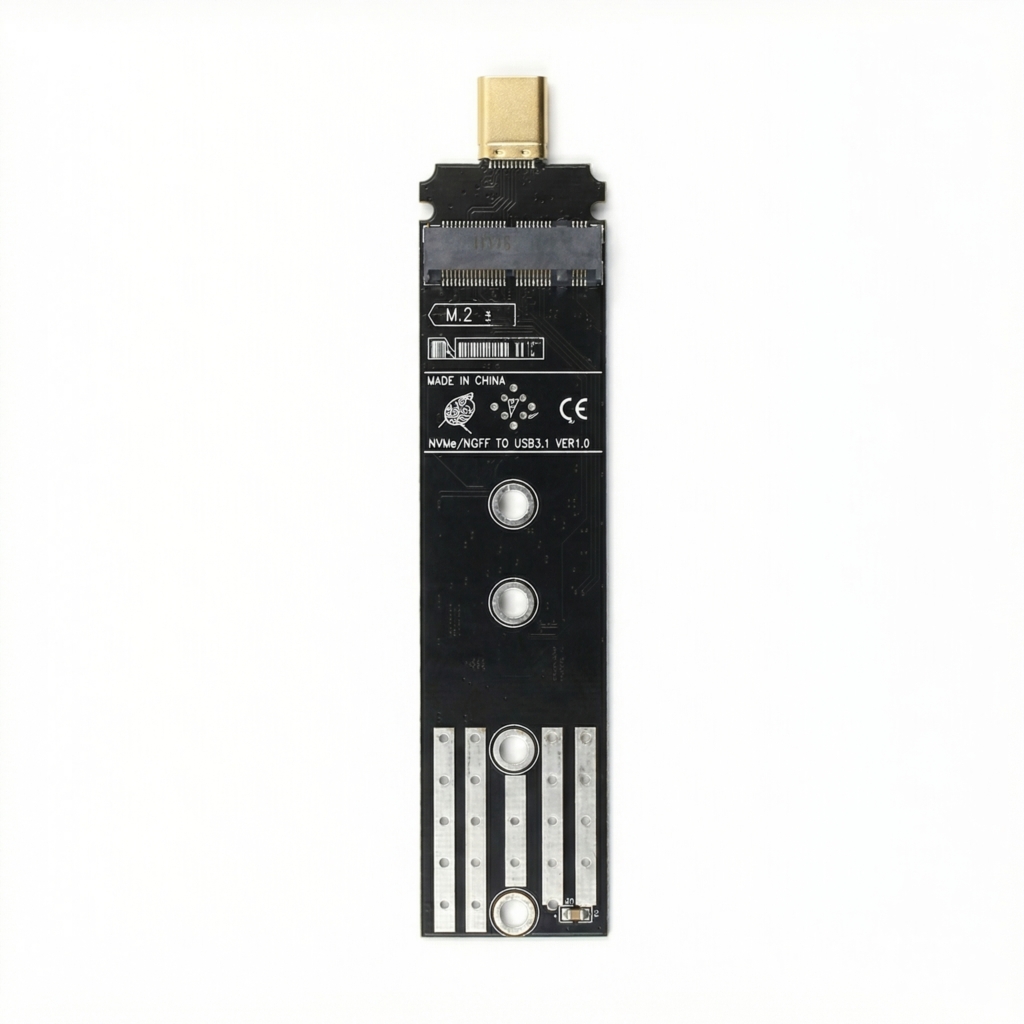

Realtek RTL9210B M.2 NVMe & SATA SSD Adapter Board – 10Gbps USB 3.1 Gen 2 – Dual Protocol Bridge Chip – Bare PCBA for DIY/Data Recovery

Description

Universal Compatibility with Dual-Protocol Technology
Upgrade your storage toolkit with this versatile M.2 to USB 3.1 Type-C adapter. Powered by the advancedRealtek RTL9210B chipset, this riser card eliminates the confusion between different drive types. It supportsbothhigh-speed M.2 NVMe (PCIe) and standard M.2 SATA (NGFF) SSDs, making it the perfect all-in-one solution for data recovery, drive cloning, or building a portable high-speed flash drive.

High-Performance Transfer
Experience read speeds up to1000MB/s(dependent on drive speed). This board utilizes the USB 3.1 Gen 2 interface for maximum bandwidth but maintains full backward compatibility with USB 3.0 and USB 2.0 ports.

Key Features:

• Dual Protocol Support:Automatically identifies and runs both NVMe and SATA protocol M.2 drives.

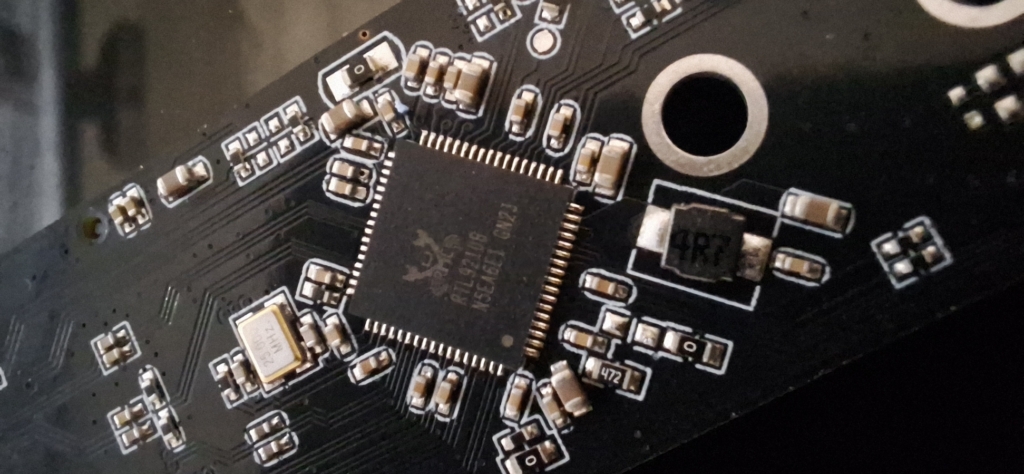

• RTL9210B Control Chip:Provides stable transmission, intelligent power management, and wide system compatibility.
• Direct USB-C Connection:Integrated Type-C interface connects directly to modern laptops, desktops, and Android phones (via OTG).
• Wide SSD Support:Compatible with sizes 2230, 2242, 2260, and 2280.
• Driver-Free:Plug and play on Windows, Mac OS, Linux, and Android.

Compatibility Guide:

• ✅ Supports:M-Key NVMe (PCIe), B+M Key NVMe, B+M Key SATA (NGFF).
• ❌ Does NOT Support:M.2 PCI-E AHCI Protocol SSDs.

Specifications:

• Chipset:Realtek RTL9210B
• Output Interface:USB 3.1 Type-C (Male)
• Max Speed:10Gbps (NVMe) / 6Gbps (SATA)
• Board Dimensions:Approx. 10.5cm x 2.3cm
• System Support:Windows 10/11, Mac OS, Linux, Android

Package Includes:

• 1 x RTL9210B M.2 to USB-C Adapter Board
• 1 x Thermal Pad (for heat dissipation)
• 1 x Securing Screw
• 1 x Screwdriver
