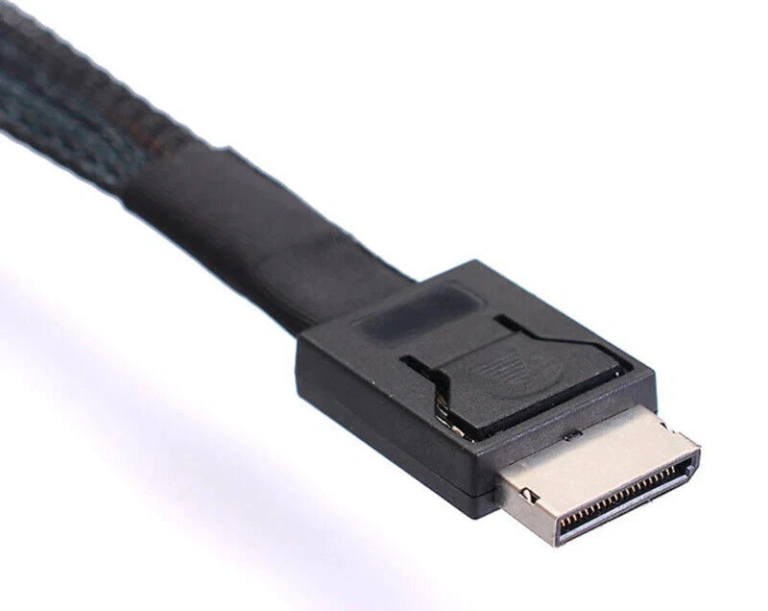

oculink (sff 8611/sff 8612) to nvme u.2 (sff 8639) adapter cable

PCIe 3.0 Gen3 to U.2/U.3 NVMe Adapter Card with 50cm Cable Kit – IO-PEX86120

Name: PCIe 3.0 Gen3 to U.2/U.3 NVMe Adapter Card with 50cm Cable Kit - IO-PEX86120
SKU: IO-PEX86120
Availability: InStock

Complete U.2/U.3 adapter kit with both card AND 50cm cable included (£30+ value). Most sellers charge extra for the cable – we include everything you need in one package. PCIe 3.0 x4 adapter with Oculink SFF-8612 connector connects to enterprise U.2 or U.3 NVMe SSDs via the included 50cm Oculink to U.2 cable. Cable-based design allows flexible drive positioning for optimal cooling. Works with Intel Optane (900P, 905P, P5800X), Samsung PM1733/PM9A3, Kioxia, Micron, and Western Digital enterprise drives. Compatible with Windows, Linux, and VMware ESXi. Includes full & low-profile brackets. Perfect for server builds, workstations, and storage expansion.

In stock

£19.95

SKU: IO-PEX86120 Categories: Add-on Cards, U.2 NVMe Adapters Barcode (EAN/UPC): 782097197534

Description
Q & A

Description

💰 COMPLETE KIT – CARD + £30 CABLE INCLUDED

Most sellers charge extra for the cable – we include it FREE!

Complete U.2/U.3 NVMe Solution – Ready to Use

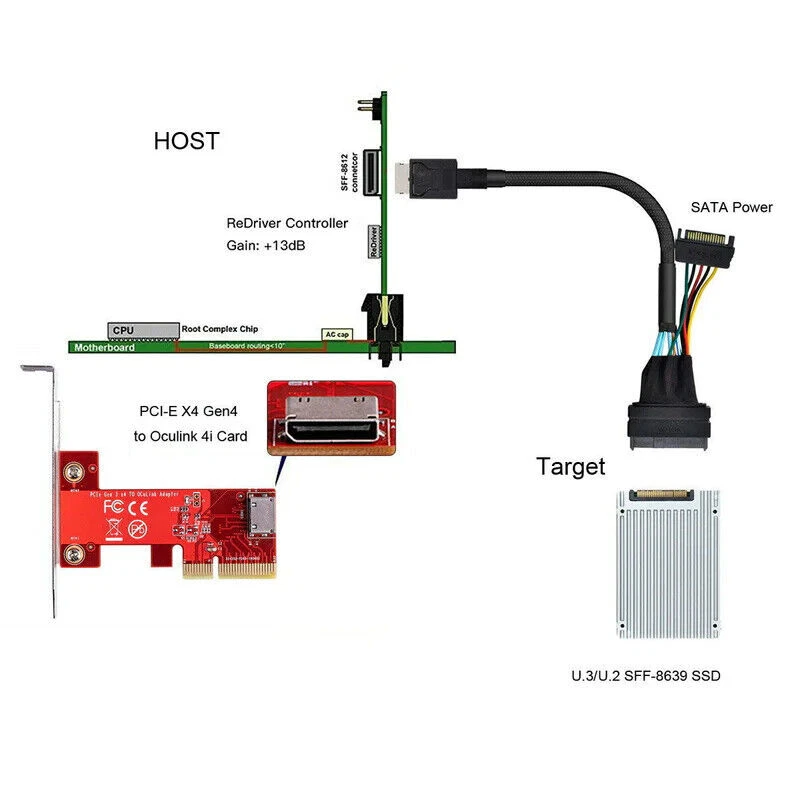

This is a complete 2-piece adapter kit for connecting enterprise U.2 or U.3 NVMe SSDs to standard PCIe slots. Unlike other listings that only include the adapter card, this kit includes both the PCIe adapter AND the valuable 50cm Oculink to U.2 cable (worth £30+ when purchased separately).

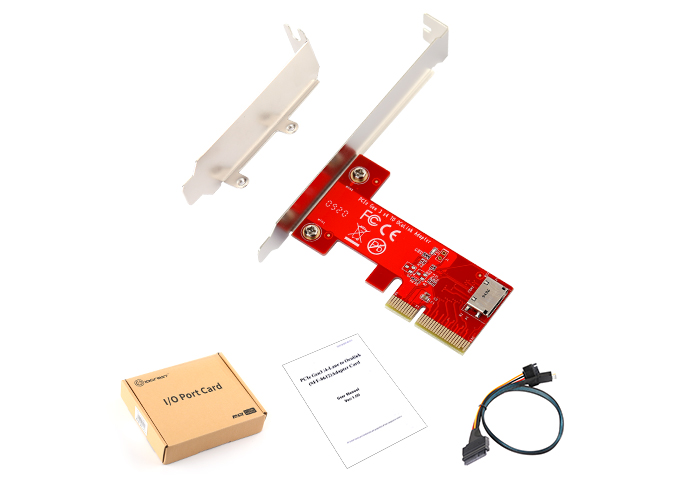

📦 Complete Kit Includes:

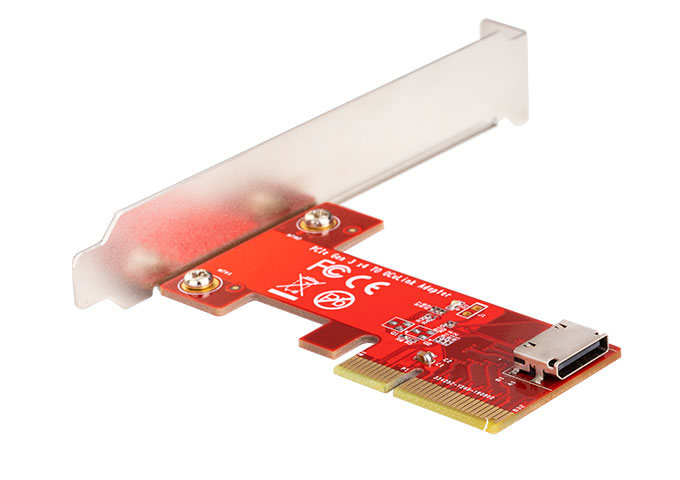

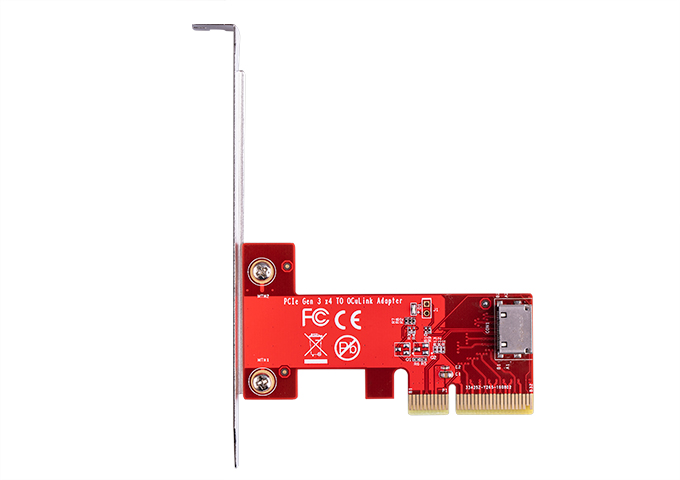

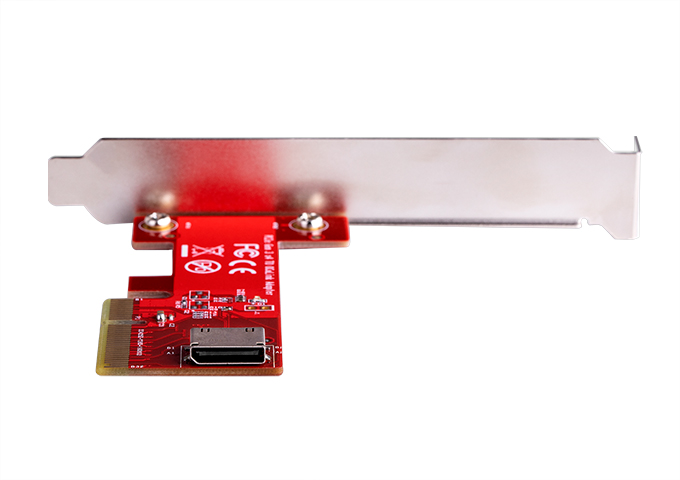

✅ PCIe 3.0 x4 adapter card with Oculink SFF-8612 connector

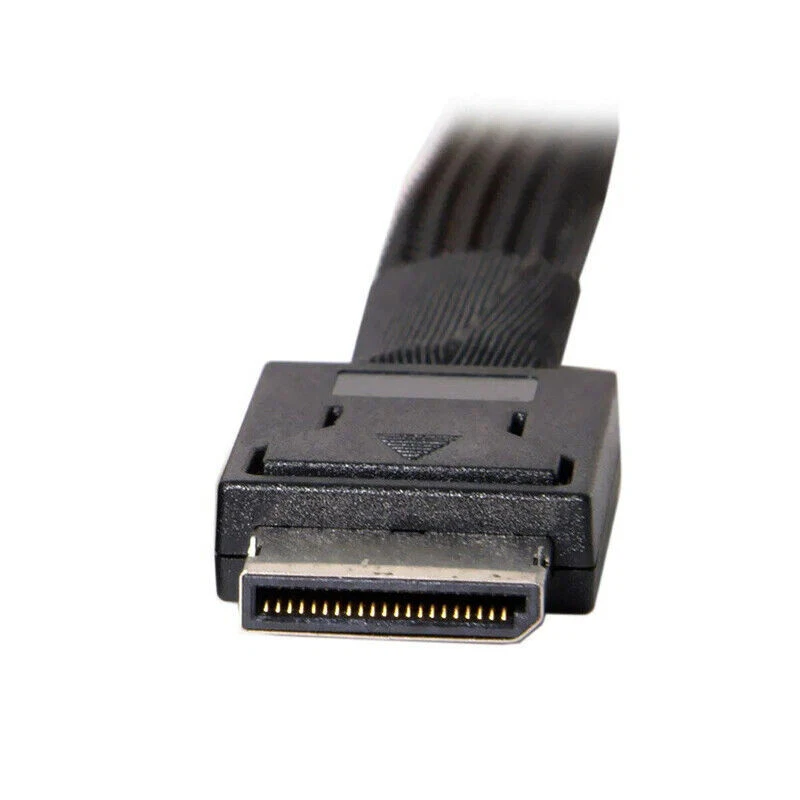

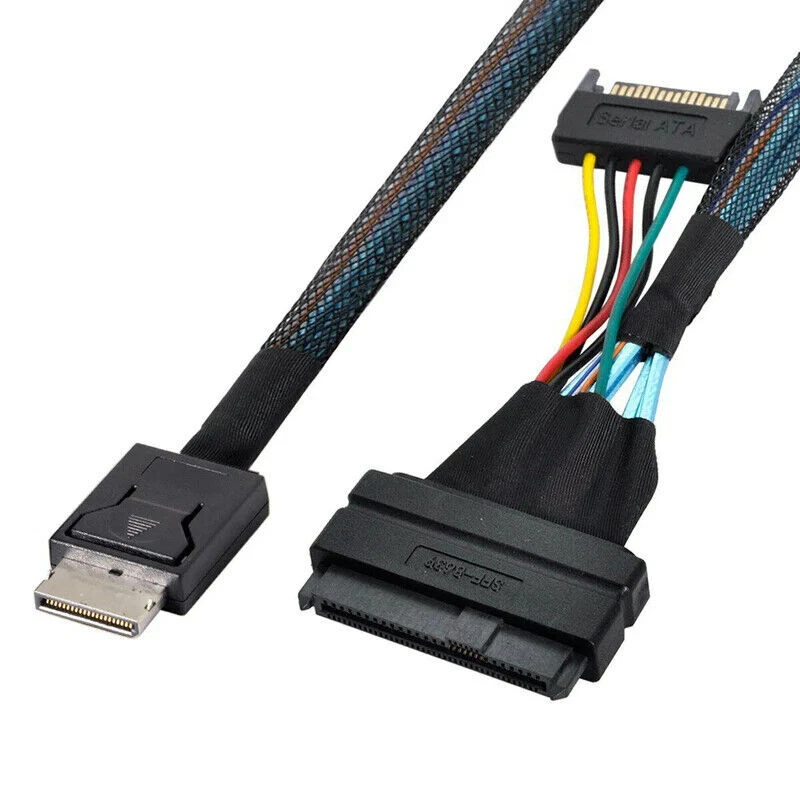

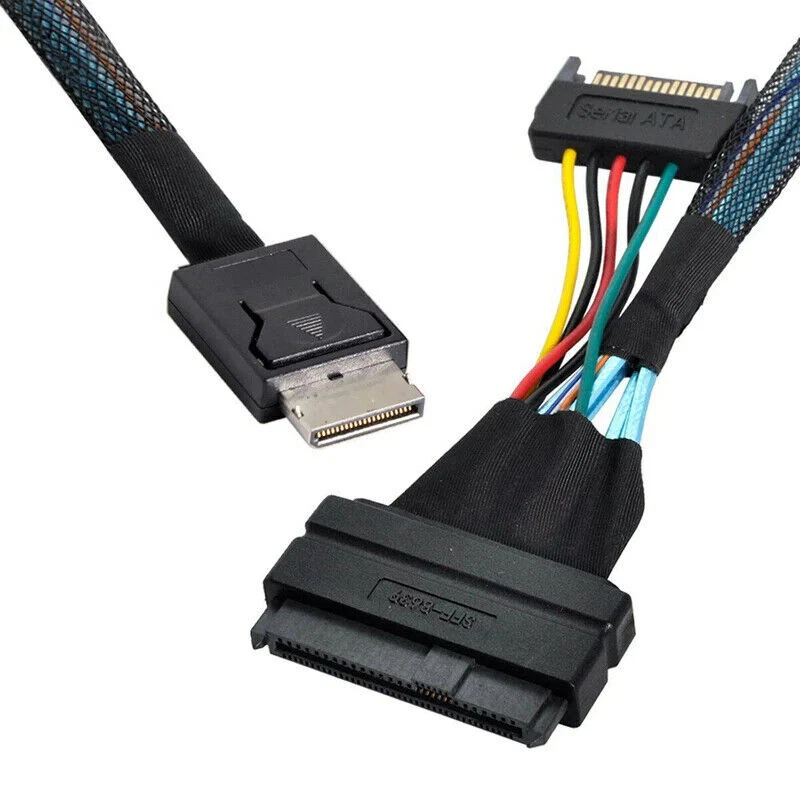

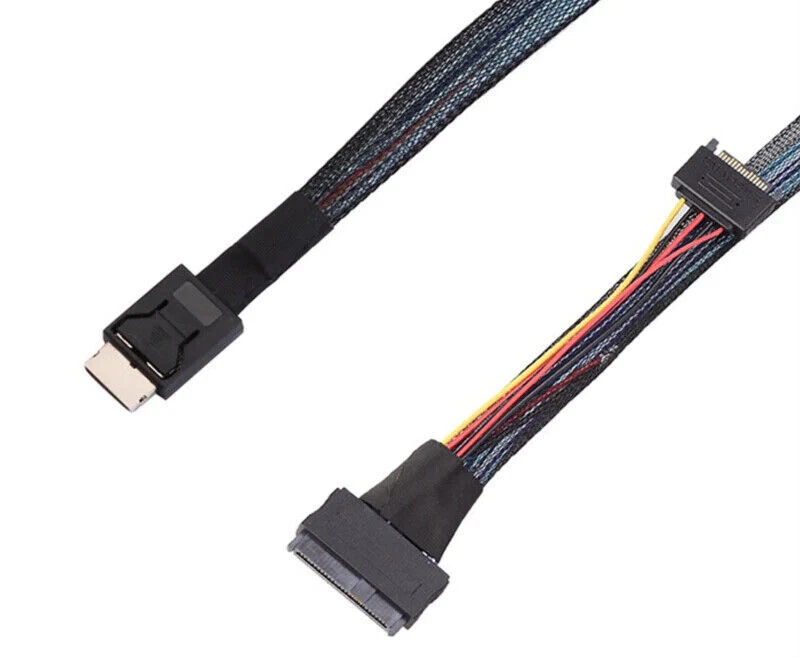

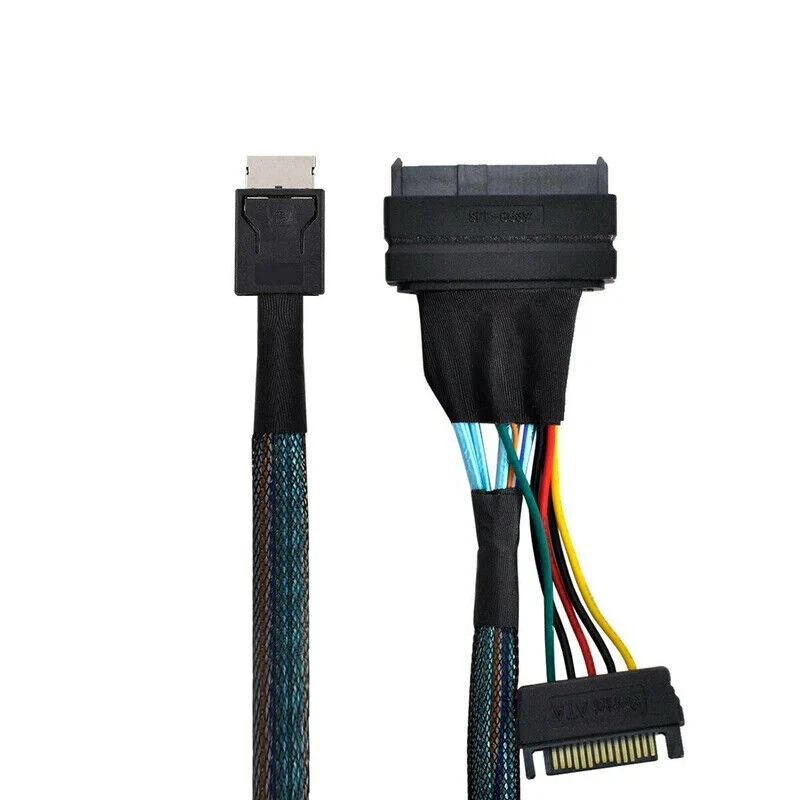

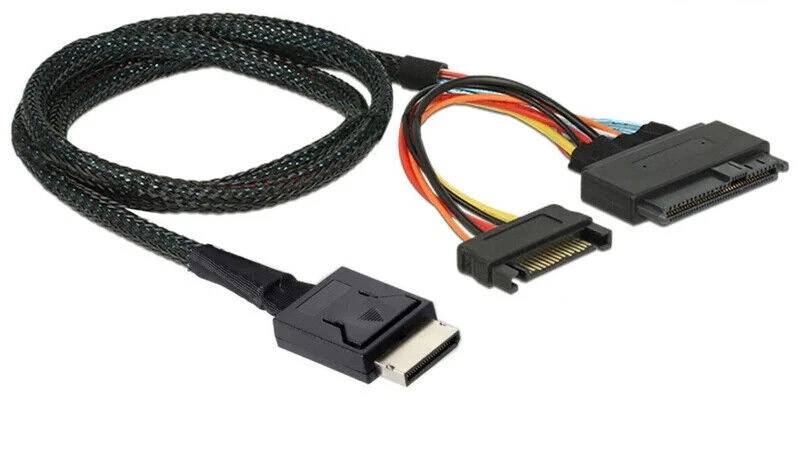

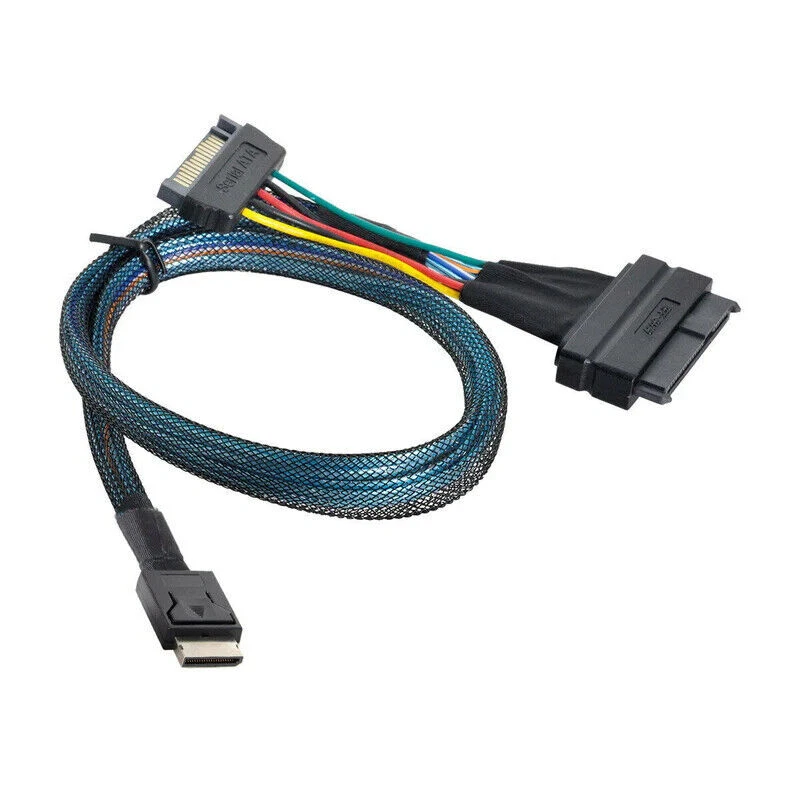

✅ 50cm Oculink SFF-8611 to U.2 SFF-8639 cable (£30+ value)
✅ Full-height PCIe bracket (pre-installed)
✅ Low-profile PCIe bracket
✅ User manual

Everything you need to connect your U.2/U.3 SSD – no additional purchases required!

Key Features

✅ U.2 & U.3 Compatible

Works with both U.2 and U.3 NVMe SSDs. U.3 drives operate in NVMe mode (backward compatible). Both use the same SFF-8639 connector.

✅ Cable-Based Flexibility

50cm cable allows you to position your U.2/U.3 SSD in a 2.5″ drive bay for better cooling, away from the hot PCIe area. Perfect for dense builds.

✅ PCIe 3.0 Performance

PCIe 3.0 x4 interface provides up to 4000 MB/s bandwidth. Sufficient for most enterprise U.2 drives and legacy Optane SSDs.

✅ Wide Compatibility

Works in PCIe x4, x8, or x16 slots. Compatible with Windows, Linux, VMware ESXi. Supports Intel Optane, Samsung, Kioxia, Micron, and WD drives.

U.2 vs U.3 Compatibility

Drive Type	Compatibility	Mode
U.2 NVMe	✅ Full native support	NVMe over PCIe
U.3 NVMe	✅ Backward compatible	NVMe mode (auto-negotiates)
M.2 NVMe	❌ Not compatible	Different connector
SATA SSD	❌ Not compatible	Different protocol

Technical Specifications

Model Number	IO-PEX86120
Interface	PCIe 3.0 x4 to Oculink (SFF-8612)
Cable Included	50cm Oculink SFF-8611 to U.2/U.3 SFF-8639
Maximum Speed	4000 MB/s (PCIe 3.0 x4 bandwidth)
Supported Slots	PCIe x4, x8, x16 (auto-negotiation)
NVMe Compliance	NVMe Express 1.2a
OS Compatibility	Windows 7/8/8.1/10/11, Linux, UEFI 2.3.1+
Card Dimensions	80 x 45mm
Cable Length	50cm (19.7 inches)

Compatible U.2/U.3 Drives

U.2 NVMe SSDs

Intel Optane: 900P, 905P, P4800X, P4801X

Samsung: PM1733, PM1735

Kioxia: CM6

Micron: 9300, 9400

Western Digital: Ultrastar DC SN640, SN840

U.3 NVMe SSDs

Intel Optane: P5800X, P5801X

Samsung: PM9A3, PM1733a

Kioxia: CM7, CD7

Micron: 7450, 7400

Western Digital: Ultrastar DC SN650, SN655

Ideal Applications

Server builds with enterprise U.2/U.3 SSDs
Workstation storage expansion
Intel Optane 900P/905P legacy systems
Data center storage controllers
NAS and file server builds
Video editing workstations
RAID controller expansion
Boot drive for server systems

💡 Why This Kit Offers Great Value

Most eBay and Amazon listings only sell the adapter card. You then need to purchase the cable separately for £25-35.

With this complete kit, you save money AND get everything you need in one package!

🚀 Fast UK Delivery

✓ Ships from UK warehouse
✓ Complete kit – no additional cables to buy
✓ Professional packaging
✓ Technical support available
✓ 99.5% positive seller feedback
