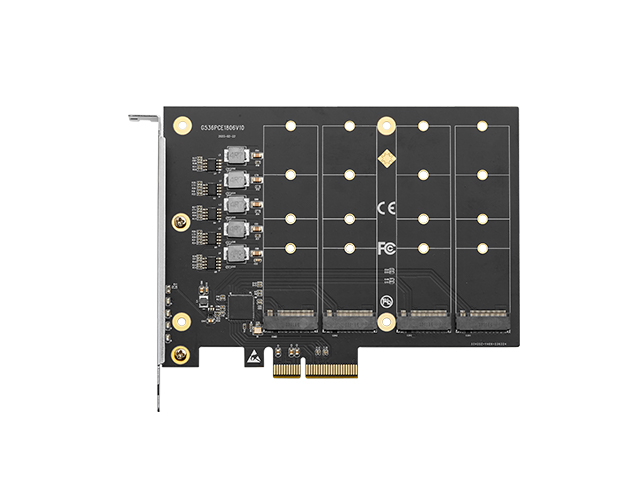

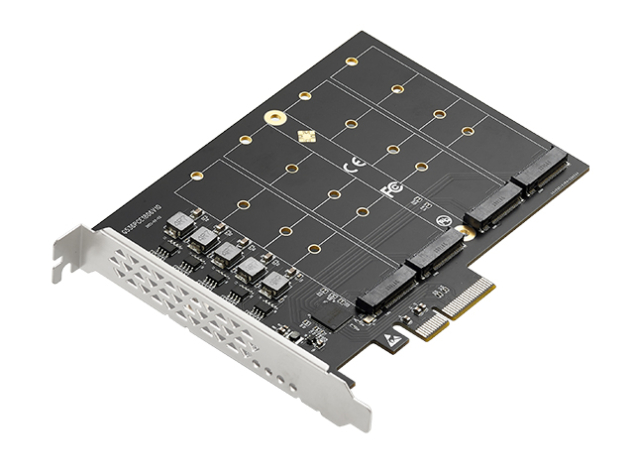

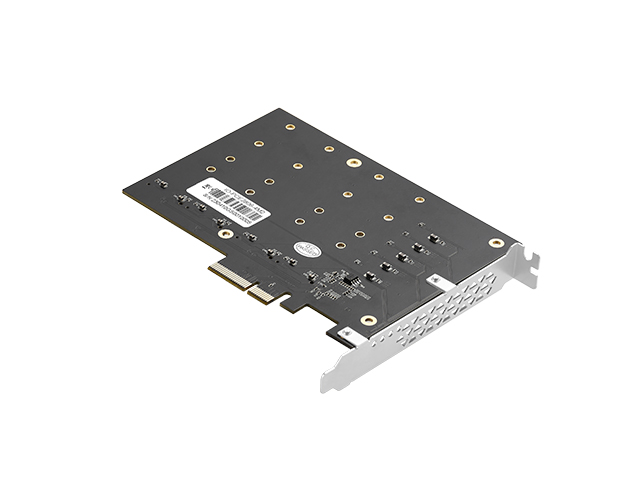

IO-PCE2806-4M2 PCIe 3.0 x4 to 4x M.2 NVMe Adapter Card – Quad M.2 NGFF Expansion
Expand your storage with 4x M.2 NVMe slots – Professional PCIe adapter with ASMedia chipset splits PCIe 3.0 x4 into four independent lanes. Supports 2230/2242/2260/2280 M.2 drives, double-sided SSDs, plug & play installation. Complete kit with thermal pads & mounting hardware.
- 700-730 MB/s per drive verified performance
- No drivers required – Windows & Linux compatible
- Complete kit included – thermal pads, screws, tools
Only 2 left in stock
£48.99
Description
Quad M.2 NVMe Expansion Made Simple
ASMedia-powered adapter for professional storage solutions
Key Features
- ✓ Quad M.2 Expansion – Add four M.2 NVMe SSDs via single PCIe slot
- ✓ ASMedia Chipset – Splits PCIe 3.0 x4 into 4x x1 lanes (1GB/s per drive)
- ✓ Universal Compatibility – 2230/2242/2260/2280 M.2 sizes supported
- ✓ Double-Sided Support – Works with thick NVMe drives
- ✓ Plug & Play – No drivers needed, instant recognition
- ✓ Complete Kit – Thermal pads, screws, screwdriver included
Real-World Performance
“Connected and recognized immediately. Each disk had write speeds of 700-730 MB/s. All four working perfectly at PCIe 3.0 x1 speed.” – Verified Customer
Technical Excellence
The IO-PCE2806-4M2 uses a high-quality ASMedia chipset to efficiently distribute bandwidth across four M.2 slots. Each slot operates independently at PCIe 3.0 x1 speed, providing reliable storage expansion without the complexity of multiple PCIe cards.
💾 Storage Expansion
Perfect for workstations and gaming PCs needing multiple fast drives
🔒 RAID Configuration
Create redundant arrays for data protection and reliability
💻 Multi-OS Systems
Run separate operating systems from dedicated drives
🎬 Content Creation
Dedicated cache and scratch disks for video editing workflows
Complete Specifications
| Specification | Details |
|---|---|
| Model Number | IO-PCE2806-4M2 |
| Chipset | ASMedia |
| Input Interface | PCIe 3.0 x4 (compatible with x4/x8/x16 slots) |
| Output | 4x M.2 M-Key sockets (PCIe protocol only) |
| Supported Sizes | 2230, 2242, 2260, 2280 M.2 NGFF |
| Drive Support | Single & double-sided NVMe SSDs |
| Lane Distribution | 4x PCIe 3.0 x1 (one per slot) |
| Speed per Drive | Up to 1GB/s (PCIe 3.0 x1 bandwidth) |
| PCIe Standards | PCIe 4.0/3.1/3.0/2.0 compatible |
| Card Size | 145mm x 110.8mm (full-height) |
| OS Support | Windows, Linux (driver-free) |
| Installation | Plug & play, no software required |

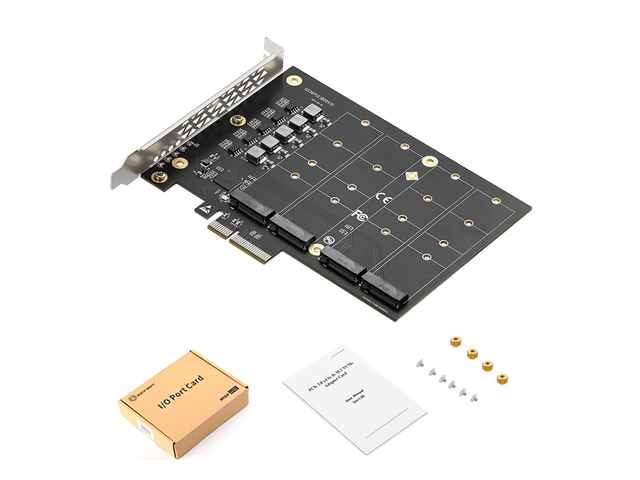

What’s in the Box
- ✓ IO-PCE2806-4M2 Adapter Card
- ✓ User Manual
- ✓ M.2 Mounting Screws (2230/2242/2260/2280)
- ✓ Screwdriver
- ✓ 4x Thermal Pads
Important Compatibility Notes
Before You Buy:
- PCIe Protocol Only: This adapter supports M.2 NVMe (PCIe) drives only – SATA M.2 drives will NOT work
- Bandwidth Sharing: Each drive gets PCIe 3.0 x1 speed (~1GB/s max per drive)
- Slot Requirement: Needs PCIe x4, x8, or x16 physical slot on motherboard
- Clearance: Ensure adequate space for full-height PCIe bracket
- Power: Verify PSU can handle additional NVMe drives
TekHouse Quality Guarantee
Fast UK dispatch • Quality tested products • Expert technical support
Additional information
| Weight | 200 g |
|---|
