9th Gen Intel Core i9 LGA 1151 Processor
Socket 1151 for 9th & 8th Intel Core i7 / i5 / i3 / Pentium / Celeron processor
* 8th Generation Intel Core™ Processor Family only support 300-Series.
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP
STORAGE
4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports SATA III (6Gb/s) SSD
LAN
Realtek LAN Chip
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC
ALC887
7.1 Channels, High Definition Audio
USB
6 x USB 3.1(Gen1) ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT
11 x PCIe 3.0 x1 Slot
1 x PCIe 3.0 x16 Slot
* Maximum VGA cards mining support are depending on VGA Driver or mining software.

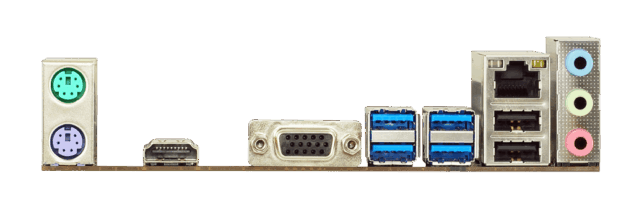

REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x VGA Port
1 x HDMI Port
1 x LAN port
2 x USB 2.0 Ports
4 x USB 3.1(Gen1) Ports
3 x Audio Jack
INTERNAL I/O
4 x SATA III Connectors (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.1(Gen1) Header (each header supports 2 USB 3.1(Gen1) ports)
1 x 8-Pin Power Connector
2 x 24-Pin Power Connectors
2 x 6-Pin PCIe Power Connectors
1 x CPU Fan Connector
2 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x COM Serial Header
1 x Clear CMOS Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION
ATX Form Factor Dimension: 29.5cm x 21.0cm ( W x L )
OS SUPPORT
Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE
BullGuard
ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
We use technologies like cookies to store and/or access device information. We do this to improve browsing experience and to show personalised ads. Consenting to these technologies will allow us to process data such as browsing behaviour or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.
Functional
Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes.The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.
Marketing
The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.

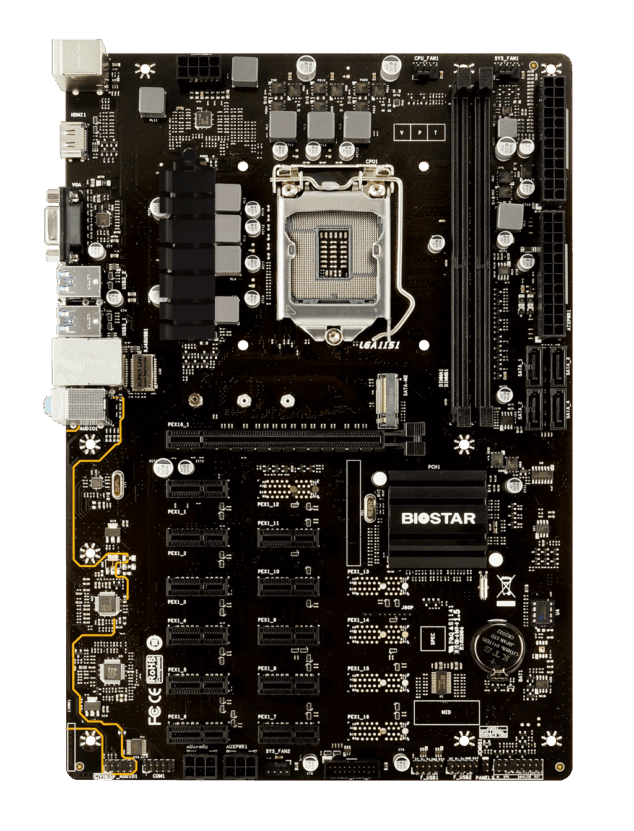

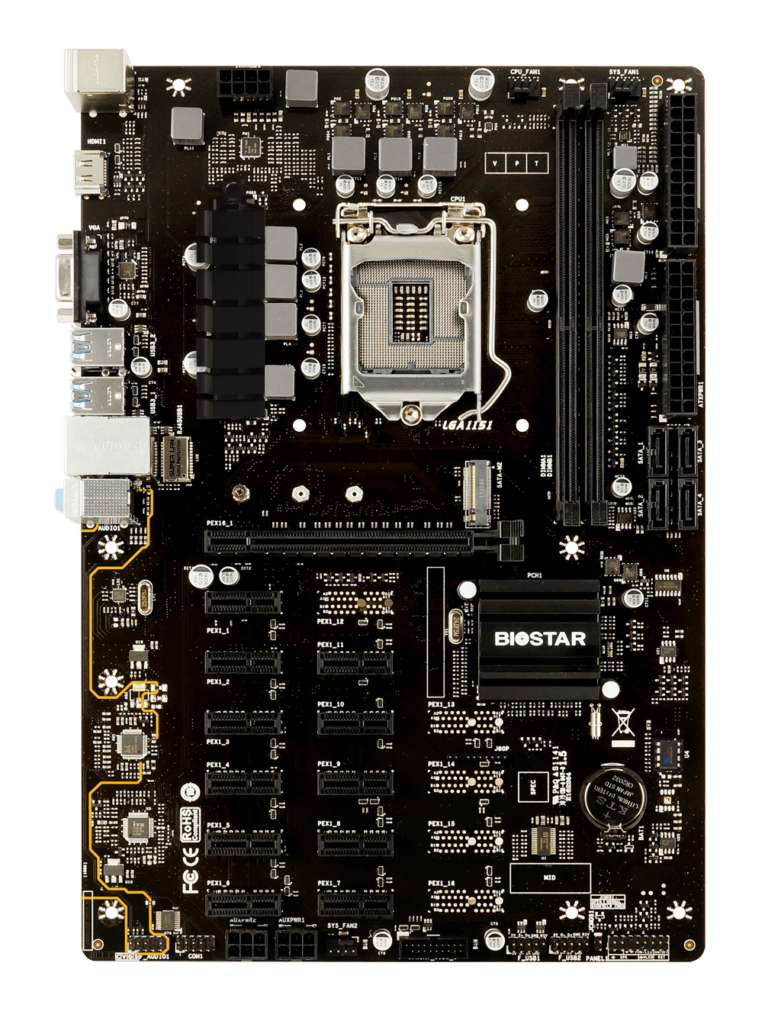

BIOSTAR TB360-BTC PRO Crypto Mining Motherboard 2.0
